Server Storage Controller Guide
In a typical server design, a RAID controller manages array functions while an HBA exposes drives to the host or software-defined storage stack. Confirm the required operating mode, ports, cable, firmware, bracket and server platform before selecting a part number.
Define the required storage role
State hardware RAID, host passthrough, HBA use or another supported requirement without assuming IT mode.
- Hardware RAID
- Host passthrough
- HBA use
- Supported requirement
Confirm ports, connector and cable
Capture internal/external ports, connector family, cable and backplane.
- Internal/external ports
- Connector family
- Cable
- Backplane
Confirm firmware, driver and mode
Provide exact server/OS context and required firmware or operating mode.
- Server/OS context
- Firmware
- Operating mode
Confirm bracket and physical platform
Record full-height/low-profile bracket, riser/slot and server model.
- Full-height/low-profile bracket
- Riser/slot
- Server model
Send a controller-ready RFQ
Include model/part number, role, cable, bracket, firmware, quantity and destination. Final availability, condition, test scope, packing and quotation are confirmed per order.
- Model/part number
- Role
- Cable
- Bracket
- Firmware
- Quantity
- Destination
Hardware and handling references

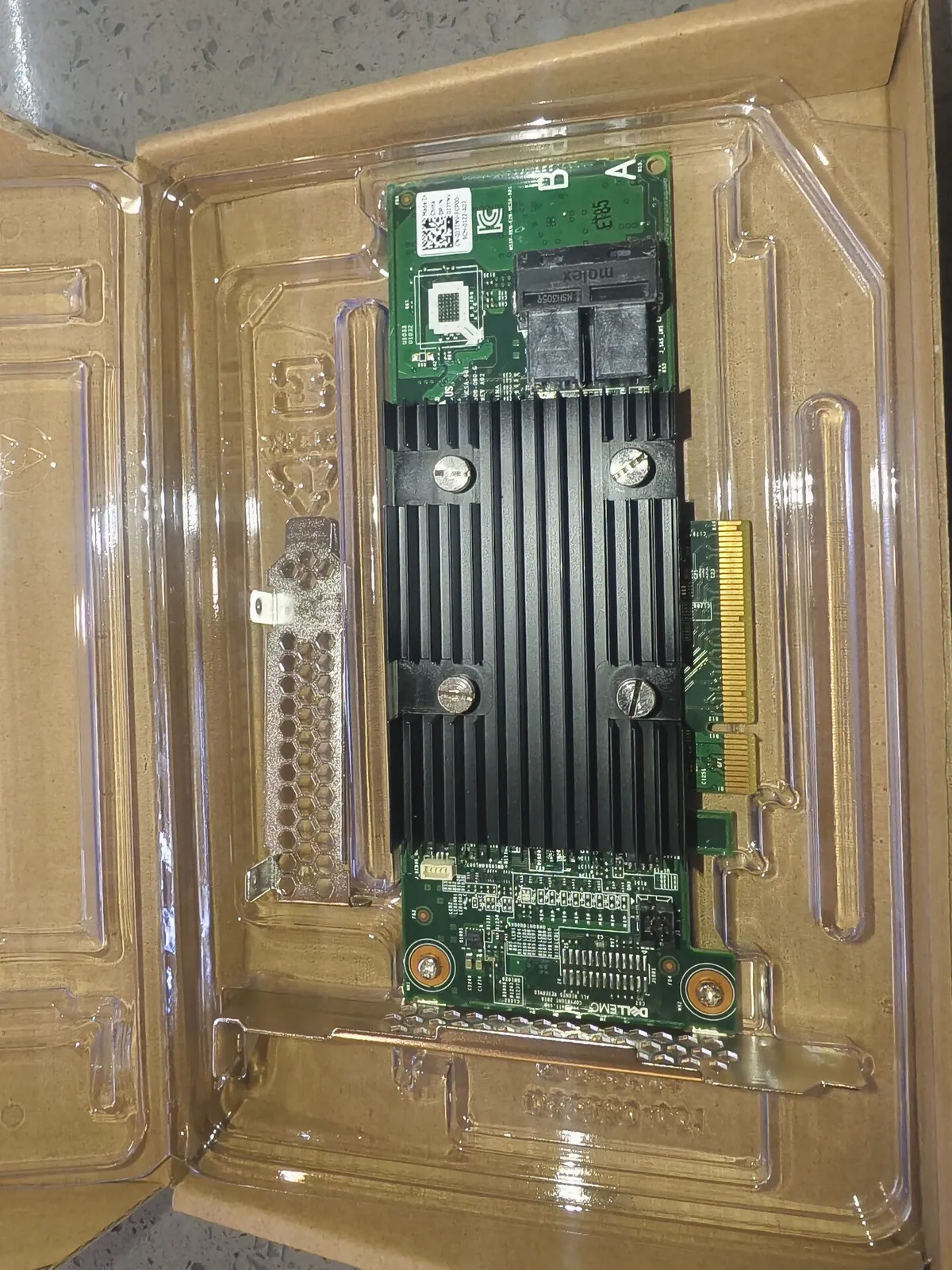

Selected first-party component images show representative labels and hardware forms; final model, interface, condition and test evidence remain order-specific.
