Server Storage Controller Decision Guide

Internal reference / RFQ workflow

HBA Mode vs RAID Mode: Define Storage Ownership First

The useful procurement question is not which label sounds faster; it is which layer should present drives, manage arrays, expose status and own recovery. Define that architecture and the exact controller's documented capabilities before selecting a part number or planning a mode change.

Authorship

Prepared and reviewed by Beihang Technology Co., Ltd.

Published | Last material update

Evidence scope

Selected first-party images document representative controller hardware, cache-protection components and an internal server storage path. They are visual references, not proof of a specific model or universal compatibility. Final identity, availability, condition, firmware, cable, backplane, platform support, packing and quotation remain order-specific.

01

Decision summary

Choose hardware RAID when the documented design assigns supported array functions to the controller, and choose an HBA or supported non-RAID presentation when the host software needs direct drive visibility. Verify the exact controller, firmware, platform and boot design because mode names and feature sets vary by model.

  • Array-ownership decision
  • Required drive visibility
  • Exact controller capability
  • Boot and recovery design

02

Define who owns the storage layout

Record whether controller firmware, the operating system, a hypervisor or a software-defined storage layer will create and monitor the storage layout. This determines which controller behaviors matter and prevents a generic request for an HBA or RAID card from hiding the actual host requirement.

  • Controller-managed arrays
  • Host-visible physical drives
  • Software-defined storage layer
  • Monitoring and recovery owner

03

Verify the exact model's supported modes

Dell documents RAID behavior for specific PERC controllers and non-RAID behavior for specific HBA products. Treat those as exact product capabilities rather than proof that every controller supports the same conversion, passthrough or mixed-drive behavior.

  • Full controller model and part number
  • Documented RAID or HBA behavior
  • Supported drive presentation
  • Platform-qualified firmware

04

Protect boot and migration requirements

Before replacing a controller or changing a supported mode, document the current boot device, array metadata, cabling and recovery plan. A sourcing page cannot validate an in-place migration, so the RFQ should identify whether the request is for a spare, like-for-like replacement or a separately engineered redesign.

  • Current boot path
  • Existing array metadata
  • Replacement or redesign scope
  • Backup and recovery plan

05

Keep connectors and cache features separate

Mode selection does not replace physical compatibility review. Confirm slot, bracket, connector, cable and backplane separately, then record whether the exact controller design includes cache and a required battery or energy-pack component.

  • PCIe slot and bracket
  • Connector and cable path
  • Backplane or enclosure
  • Cache-protection requirement

06

RFQ checklist

Send the exact controller and server part numbers, quantity, intended RAID or HBA role, required drive visibility, operating system, boot requirement, current storage layout, connector and cable path, cache-protection requirement, target condition, destination and requested evidence. Final availability, condition, test scope, packing and quotation are confirmed per order.

  • Controller, platform and quantity
  • Mode, drive visibility and OS
  • Boot, migration and cable path
  • Condition, evidence and destination

First-party evidence

Practical proof behind the guide

These first-party images document representative product, inspection, packing, shipping, tracking or policy evidence, as applicable to this guide. Final order evidence is confirmed separately.

Dell EMC PCIe card with heat sinks and a metal bracket in a protective tray
First-party server storage-controller card reference. Exact RAID or HBA role, firmware, connector, bracket, cable and platform requirements are confirmed per RFQ.

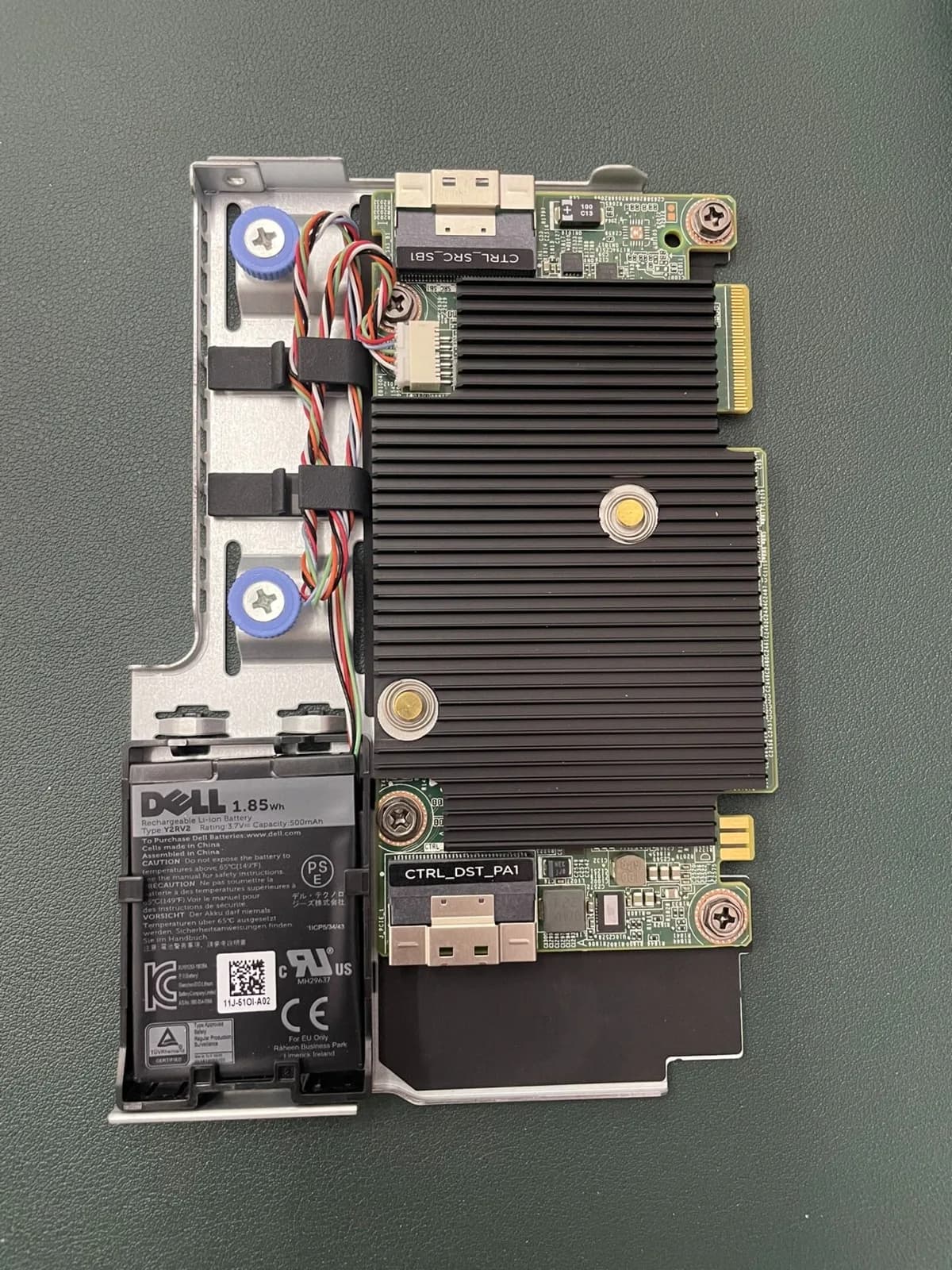

Dell storage controller module with heat sink, connectors and attached battery
First-party Dell storage-controller module reference with an attached battery component. Exact controller identity, cache design, battery or energy-pack requirement, firmware and server support must be confirmed from the quoted part number.
HPE rack server interior showing motherboard slots, cables, risers and drive-bay area
First-party rack-server interior reference for tracing the controller, riser, cable and drive-bay path. Exact server model, controller, connector, cable, backplane and bay support remain RFQ-specific.

Manufacturer references

Documented family facts

Manufacturer references support documented family facts. They do not confirm Beihang stock, unit condition, compatibility, warranty, or quotation terms.

  • Dell

    Dell PERC 10 RAID mode documentation

    Supports: Model-family documentation for RAID-mode behavior on the covered PERC 10 controllers.

    View manufacturer source

  • Dell

    Dell HBA355 and HBA350 technical specifications

    Supports: Model-specific non-RAID HBA functions and supported drive categories.

    View manufacturer source

  • HPE

    HPE Smart Array controller installation guidance

    Supports: Platform installation context showing that controller, cabling and server procedures remain model-specific.

    View manufacturer source
