SAS HBA Compatibility Checklist Before Quotation

A SAS HBA is selected as part of a complete storage path, not by PCIe form or port count alone. Record the server, required host role, slot, port location, connector, cable, backplane, drive interface, operating system and firmware context before requesting a part-number quotation.

Authorship

Prepared and reviewed by Beihang Technology Co., Ltd.

Published | Last material update

Evidence scope

Selected first-party images document representative controller hardware, cache-protection components and an internal server storage path. They are visual references, not proof of a specific model or universal compatibility. Final identity, availability, condition, firmware, cable, backplane, platform support, packing and quotation remain order-specific.

01

Decision summary

Approve an HBA candidate only after the exact server and controller part numbers are mapped through the PCIe slot, internal or external connector, cable, backplane or enclosure, drive interface and required operating mode. A physically similar card or connector does not establish platform support.

  • Exact server and HBA identifiers
  • Required HBA or passthrough role
  • Connector-to-bay path
  • Firmware and operating-system context

02

Identify the server, slot and controller role

Start with the server brand, model and generation, then record the available riser, PCIe slot and bracket form. State whether the host needs non-RAID drive presentation, a supported passthrough workflow or another documented controller role rather than assuming that every card can be converted to the same mode.

  • Server model and generation
  • Riser and PCIe slot
  • Full-height or low-profile bracket
  • Required storage role

03

Map internal and external ports

Confirm whether the requested HBA connects to bays inside the server or to an external shelf. Dell documents distinct internal and external HBA variants, while Broadcom documents connector placement for a specific mixed-port model; use those as model-specific examples, not as a universal connector rule.

  • Internal or external destination
  • Exact port count and location
  • Connector family at both ends
  • Cable part number and length

04

Trace the backplane, enclosure and drive interface

Follow the path from the HBA through the exact cable to the backplane or external enclosure and then to the requested SAS or SATA drive bays. Record expander, enclosure and bay information where applicable, because a drive label alone cannot confirm the controller-to-bay path.

  • Backplane or enclosure part number
  • Expander context if present
  • Supported bay and drive interface
  • Existing cable labels and routing

05

Confirm firmware, driver and boot requirements

Provide the operating system, boot requirement and current platform firmware context. Review the exact controller documentation and server support information for the proposed part number; do not infer boot, driver or firmware behavior from another HBA in the same family.

  • Operating system and release
  • Boot-drive requirement
  • Controller firmware context
  • Server support evidence

06

RFQ checklist

Send the exact HBA and server part numbers, required role, quantity, bracket, PCIe slot or riser, internal or external ports, connector and cable details, backplane or enclosure, drive interface, firmware or OS requirement, target condition, destination and requested evidence. Final availability, condition, test scope, packing and quotation are confirmed per order.

  • Model, part number and quantity
  • Role, slot, bracket and ports
  • Cable, backplane and drive path
  • Condition, evidence and destination

First-party evidence

Practical proof behind the guide

These first-party images document representative product, inspection, packing, shipping, tracking or policy evidence, as applicable to this guide. Final order evidence is confirmed separately.

Dell EMC PCIe card with heat sinks and a metal bracket in a protective tray
First-party server storage-controller card reference. Exact RAID or HBA role, firmware, connector, bracket, cable and platform requirements are confirmed per RFQ.
Blue SAS/SATA cables labeled for server-board drive connections
First-party labeled server SAS cable reference. Exact part number, connector, cable length, drive/backplane role, revision and chassis compatibility still require review for the specific RFQ.

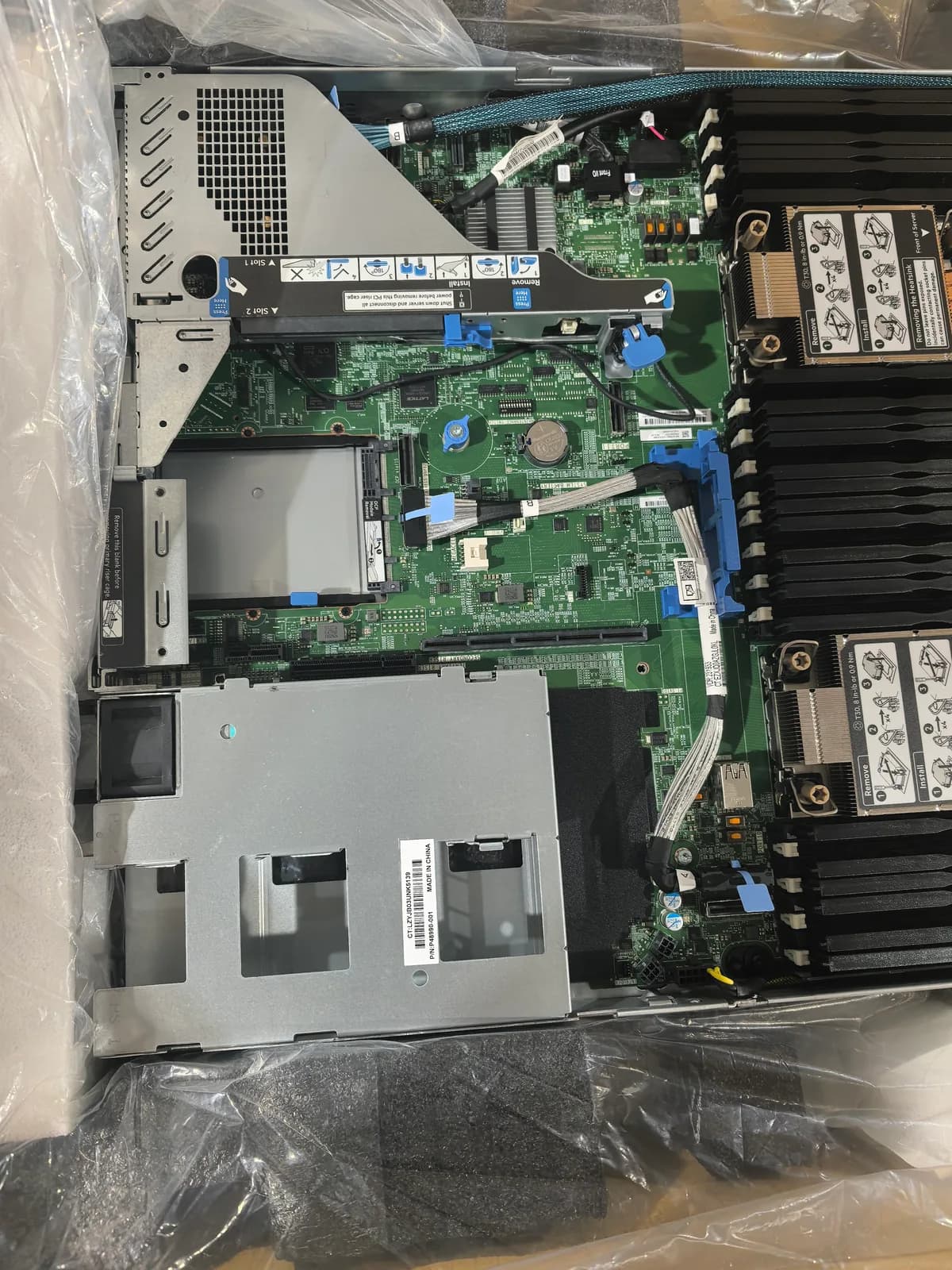

HPE rack server interior showing motherboard slots, cables, risers and drive-bay area
